Dowel Drills for Blind Drilling with 4 Spirals – P152 Z=2 70mm Overall Length

Name: Dowel Drills for Blind Drilling with 4 Spirals - P152 Z=2 70mm Overall Length - Dolphin Tooling Ltd
Availability: InStock

Dowell Drills used for blind drilling applications.

For tear-free through-holes drilling in panels.

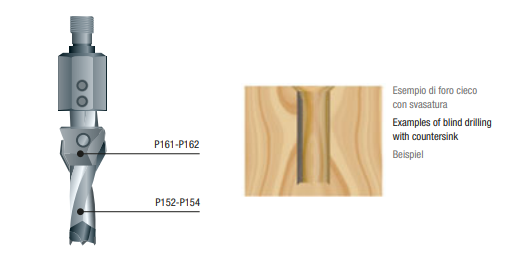

HW Tungsten Carbide. 60 degree cutting point. For use with item P161.

Resharpenable Tool. Price available on request.

£18.31 – £45.77

P152/154 Dims 70

LH / RH

Clear

Product Details

Dowell Drills used for blind drilling applications.

For tear-free through-holes blind drilling in panels.

HW Tungsten Carbide. Z=2

Weight	1 kg
Dimensions	8 × 1 × 0.2 cm
P152/154 Dims 70	D=4, B=43, L=70 (mm), D=5, B=43, L=70 (mm), D=5.5, B=43, L=70 (mm), D=6, B=43, L=70 (mm), D=6.35 (1/4"), B=43, L=70 (mm), D=7, B=43, L=70 (mm), D=7.5, B=43, L=70 (mm), D=8, B=43, L=70 (mm), D=8.2, B=43, L=70 (mm), D=9, B=43, L=70 (mm), D=9.5 (3/8"), B=43, L=70 (mm), D=10, B=43, L=70 (mm), D=10.5, B=43, L=70 (mm), D=11, B=43, L=70 (mm), D=12, B=43, L=70 (mm), D=12.7 (1/2"), B=43, L=70 (mm), D=13, B=43, L=70 (mm), D=14, B=43, L=70 (mm), D=15, B=43, L=70 (mm)
LH / RH	Left Hand Rotation (LH), Right Hand Rotation (RH)
