Dowel Drills for Blind Drilling with 2 Spirals – P154 Z=2 70mm Overall Length

Name: Dowel Drills for Blind Drilling with 2 Spirals - P154 Z=2 70mm Overall Length - Dolphin Tooling Ltd
Availability: InStock

Dowell Drills used for blind drilling applications.

For tear-free through-holes drilling in panels.

HW Tungsten Carbide. 60 degree cutting point. For use with item P162.

Resharpenable Tool. Price available on request.

£21.65 – £44.55

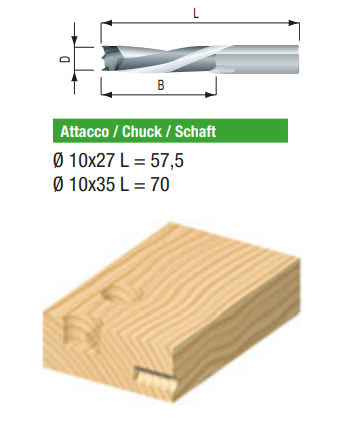

P154 70 Dims

LH / RH

Clear

Product Details

Dowell Drills used for blind drilling applications.

For tear-free through-holes blind drilling in panels.

HW Tungsten Carbide. Z=2

Weight	1 kg
Dimensions	8 × 1 × 0.2 cm
P154 70 Dims	D=4, B=35, L=70 (mm), D=5, B=35, L=70 (mm), D=6, B=35, L=70 (mm), D=6.35 (1/4"), B=35, L=70 (mm), D=7, B=35, L=70 (mm), D=8, B=35, L=70 (mm), D=9, B=35, L=70 (mm), D=9.5 (3/8"), B=35, L=70 (mm), D=10, B=35, L=70 (mm), D=11, B=35, L=70 (mm), D=12, B=35, L=70 (mm), D=12.7 (1/2"), B=35, L=70 (mm), D=13, B=35, L=70 (mm), D=14, B=35, L=70 (mm), D=16, B=35, L=70 (mm)
LH / RH	Left Hand Rotation (LH), Right Hand Rotation (RH)
